xWDM Wavelength Mux/Demux Card
oW42xx Series
eWAVE's multiplexer combines multiple signal into one single
fiber. eWAVE offers standard 8-channel CWDM and DWDM mutliplexers. Most
models include a bandwidth range of narrowband (1470/1620nm) and
wideband (1310/1550 nm) port for overlaying new channels on existing
circuits and a faceplate monitor port for testing and installation.
Customize configurations and channel plans are supported with
standard lead times and no additional set up or assembly charges by
leveraging eWAVE's unique manufacturing capabilities. Customizable
options include:
Number of channel; specific wavelengths
WDM, CWDM or DWDM
Mux/Demux or OADM; unidirectional or bidirectional
Additional wavelengths for overlaying on top existing systems
Monitoring port
Connectors: SC or LC; PC or APC

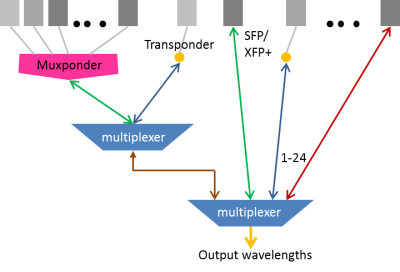

As shown in the diagram below, for xWDM applications, signals from SONET/SDH, Ethernet, or other transmission equipment are converted to the required wavelengths through muxponders, transponders or SFP/XFPs used in the transmission equipment before being combined by the multiplexer.

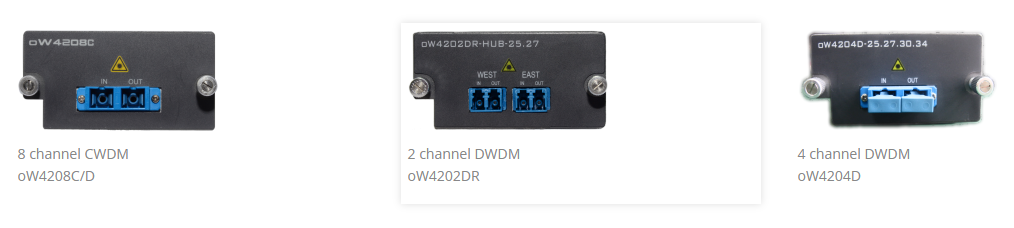

A few of many available multiplexer models are shown below. These Mux/Demux card can be connect with eWAVE4107 and eWAVE4107DiR.
Features:
ITU compliant wavelength group Mux/Demux
Support transmission of 0 ~ 10Gbps per channel
Multiplexing and De-multiplexing up to 2/4/8 xWDM channels over one fiber pair
Hot pluggable function
