Products

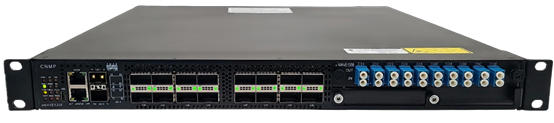

• DWDM platform on 19 inch, 1U Chassis

• Transponder of 100G to 800G data transmission capacity

• Four line-side transponder channels for hot-pluggable transceivers CFP2

• Eight client-side transponder channels for hot-pluggable transceivers QSFP

• Maximum two OSC ports support

• One slot for MUX/DEMUX (4 CH DWDM)

• One slot for EDFA cards or OLP card

• Dual Pluggable power units/ Pluggable fan module

• Point-to-point / Ring topology

• Multi-chassis stackable to expand transmission capacity

• Plug & play, auto network configuration and management

• Support CLI, WebGUI, SNMP management

Application:

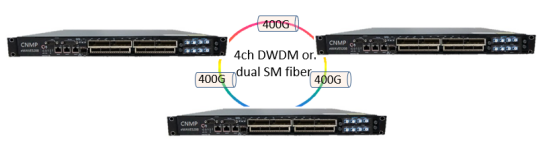

Ring with maximum transmission capacity of 400G per fiber route in dual fibers

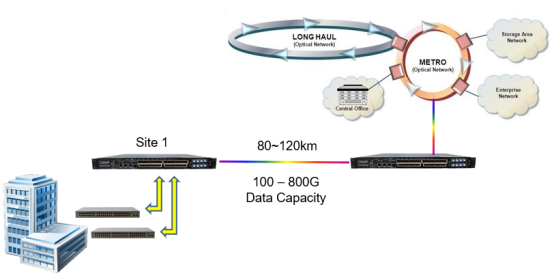

Core Network:
