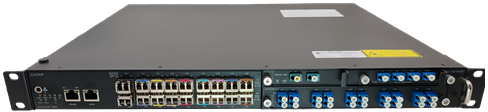

eWAVE2108E is a cost effective, 1 RU chassis and multi-serviceWDM transmission platform which provides 8 wavelengths for point-to-point application, or 4 wavelengths ring application per device, more wavelengths application is possible by stacking multiple boxes at each location.
Multi-Rates (from 10GE to 25GE, or 16G to 32G Fibre Channel FC) are supported in each channel. It integrates 3R (CDR) for every channel for better performance. LLF and TX sync functions are also supported and can be configured by software. It supports 1+1 optical channel and optical line protection. It is stackable for future expansion.
eWAVE2108 complies with standard of ITU G.709, FCC, RoHS and VCCI.
Application:

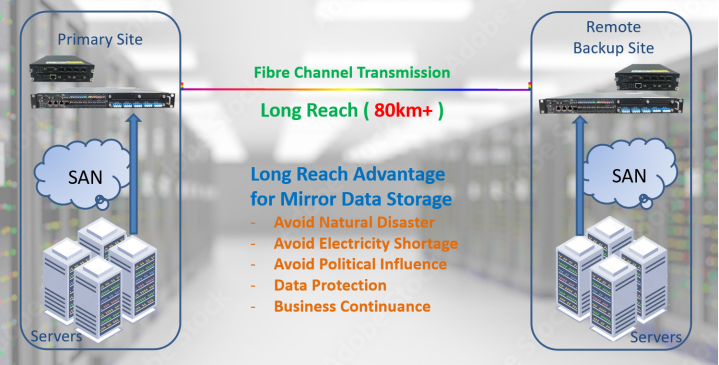

Fibre Channel Transmission Solution for SAN in Data Center
Transmission Data Rate | |
Ethernet Fibre Channel (FC) Others
| 10GbE& 25GE 10G ~ 14.2G & 20.2 ~ 28.4G Rate |
Client Interface | |
Number of Interface | Maximum: 8x SFP+, 8x SFP28 |
Wavelength | 850/1310/1550nm |
Line Interface | |
Number of Interface | Maximum: 8x SFP+, 8x SFP28 |
Wavelength | CWDM/DWDM |
Management Interface | LAN(RJ45)/*OSC(SFP LC) |
Management Protocol | SNMP/Syslog/Telnet/Web GUI |
Mux/DeMux*oW2208D | DWDM 8CH Point to Point: Dual fibersin 2 directions |
Mux/DeMux*oW2204C-R | CWDM 4CH Ring: Dual fibers in 2 directions |
Mux/DeMux*oW2204D-R | DWDM 4CH Ring: Dual fibers in 2 directions |
Pre-EDFA*oW4312RP | Maximum +12dBm power, Gain 20～30dB, OSNR 6dB@25dB |
Boost EDFA*oW4317RB | Maximum +17dBm power, Gain 12～18dB, OSNR 6dB@15dB |
Power Supply | 100~240VAC:50~60Hz OR 48VDC |
Temperature | Working 0～50℃：Storage -40～85℃ |
Power Consumption | ＜100W |
Dimension | 440(W)×393(D)×44.4(H)mm |
Weight | 7.5kg |
Certificate | VCCI：Class A/CE：EN55022,EN55024,EN61000-3-2,EN61000-3-3/FCC：Part 15 B |
Remark | * Selective item based on network application |
